Hydraulic Pressure Roller Briquette Press with Forced Feeder
Production line introduction :
This machine is mainly used to compress light materials with little water, such as slag after lime block screening, light burnt magnesia powder, refractory materials, metallurgical auxiliary materials, aluminum dust, and aluminum chips, etc.

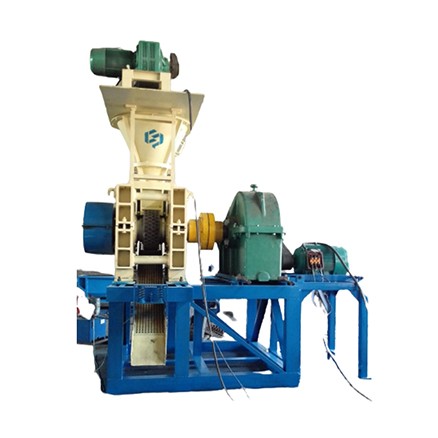

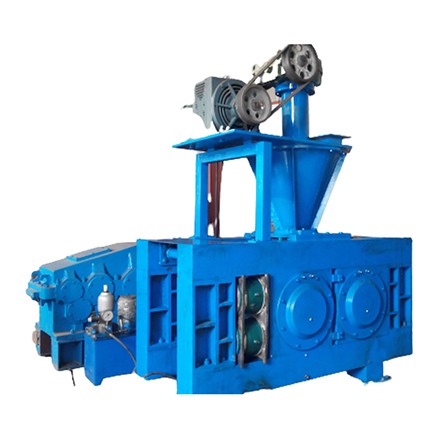

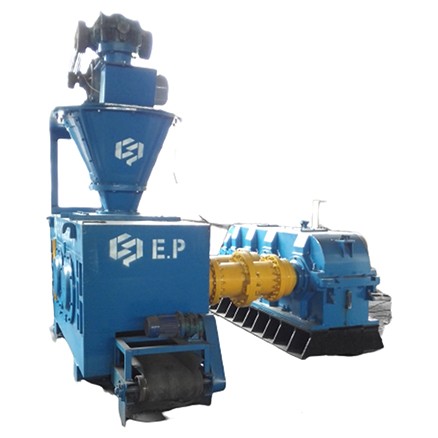

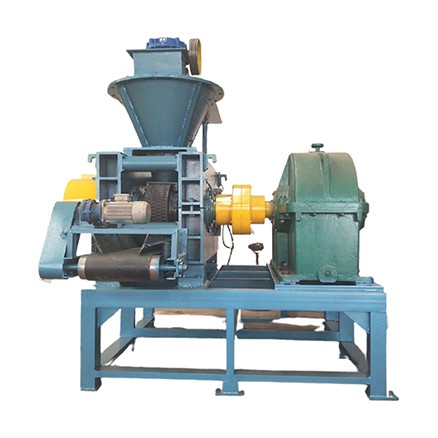

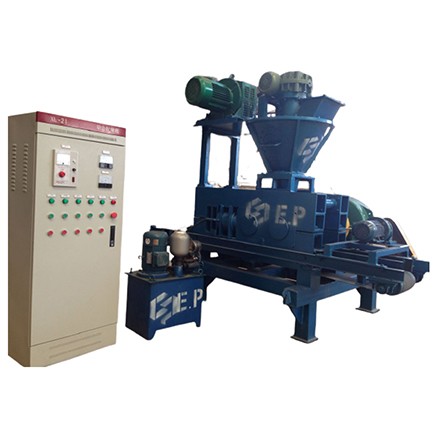

Hydraulic Pressure Roller Briquette Press with Forced Feeder
This machine is mainly used to compress light materials with little water, such as slag after lime block screening, light burnt magnesia powder, refractory materials, metallurgical auxiliary materials, aluminum dust, and aluminum chips, etc. The ball shape occupies an important factor in the entire process. It determines whether the material is completely burned or the gas permeability in smelting. Our company can customize different molds according to customer requirements, and the mold material can be customized also.
Highlights
1. Equipped with a spiral pressure device, ensuing the machine compresses light materials;
2. With a buffer device, the equipment much more durable;
3. Good press performance, high ball formation rate and high ball strength;
4. Low power loss, high efficiency, and low maintenance.
Technical Parameter
| Model | Capacity (t/h) | Roller diameter (mm) | Roller width (mm) | Maximum pressure (t) | Weight (t) | Size (m) | Power (kw) |
| HSYQS-430 | 2 | 430 | 200 | 200 | 11 | 3.7*3.25*2.0 | 45+15+2.2 |
| HSYQS-520 | 3 | 520 | 200 | 400 | 13 | 3.7*3.8*2.05 | 55+15+2.2 |
| HSYQS-700 | 5 | 700 | 225 | 300 | 17 | 4*4.15*2.8 | 75+18.5+2.2 |
| HSYQS-750 | 7 | 750 | 210 | 400 | 22 | 4.5*4.15*2.8 | 110+18.5+2.2 |
