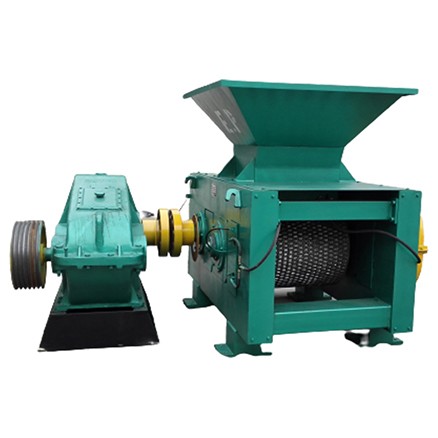

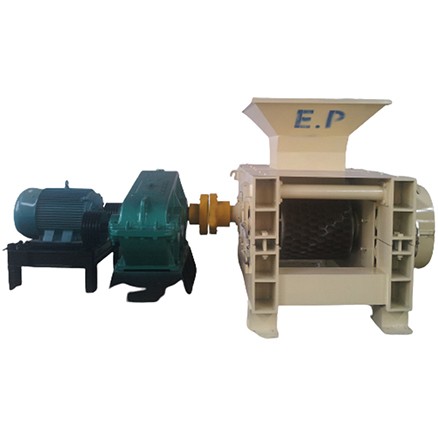

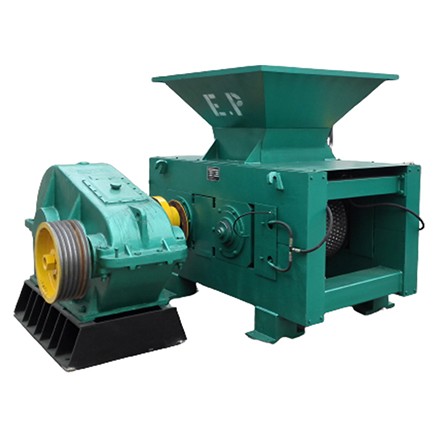

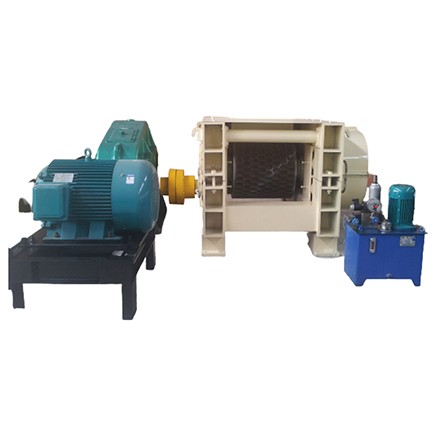

Hydraulic Pressure Roller Briquette Press
Production line introduction :
The hydraulic pressure ball briquette machine can press and mold hard to form materials, such as various mineral powder, metal powder, coal powder, coke powder, and other high value-added waste materials.
Hydraulic Pressure Roller Briquette Press
The hydraulic pressure ball briquette machine can press and mold hard to form materials, such as various mineral powder, metal powder, coal powder, coke powder, and other high value-added waste materials. The ball shape occupies an important factor in the entire process. It determines whether the material is completely burned or the gas permeability in smelting. Our company can customize different molds according to customer requirements, and the mold material can be customized also.
Highlights
1. Equipped with a hydraulic device, making the strength of the finished ball greater;
2. Pressure roller material is wear-resistant, long service life;
3. Adaptable production situation and large output;
4. Constant feeding pressure, stable pellet quality;
5. Adjustable pressure roller gap, without dislocation.
Technical Parameter
| Model | Capacity (t/h) | Roller diameter (mm) | Roller width (mm) | Maximum pressure (t) | Weight (t) | Size (m) | Power (kw) |
| HSYQH-450 | 8 | 450 | 250 | 400 | 6.3 | 3*2.8*2.6 | 37 |
| HSYQH-500 | 15 | 500 | 300 | 300 | 6.1 | 3*2.2*2.6 | 37-4 |
| HSYQH-650 | 18 | 650 | 300 | 300 | 10 | 3*2.5*2.6 | 45 |
| HSYQH-750 | 20-22 | 750 | 300 | 300 | 11 | 3*2.5*2.6 | 55 |
| HSYQH-850 | 25 | 1000 | 300 | 300 | 14 | 3*2.8*2.6 | 55 |
| HSYQH-290 | 3 | 290 | 200 | 30 | 1.5 | 1.8*1.35*1.85 | 7.5 |
| HSYQH-360 | 5 | 360 | 240 | 30 | 2.5 | 1.8*1.5*1.8 | 15-18.5 |
| HSYQH-400 | 6 | 400 | 240 | 30 | 2.8 | 2.1*1.5*1.9 | 15-18.5 |
| HSYQH-520 | 6-10 | 520 | 240 | 400 | 12 | 3.7*2.8*2.2 | 55 |
| HSYQH-560 | 8 | 560 | 220 | 400 | 16 | 3.7*2.8*2.2 | 45-6 |
| HSYQH-700 | 8-12 | 700 | 225 | 400 | 18 | 4*2.8*2.5 | 75-6 |
