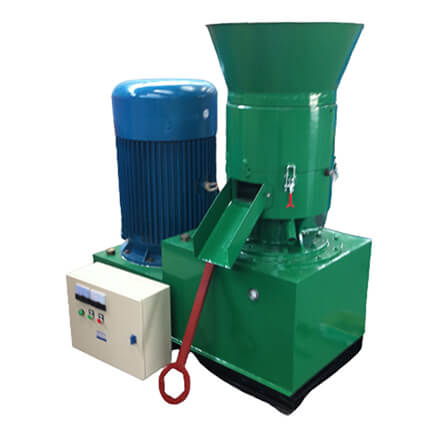

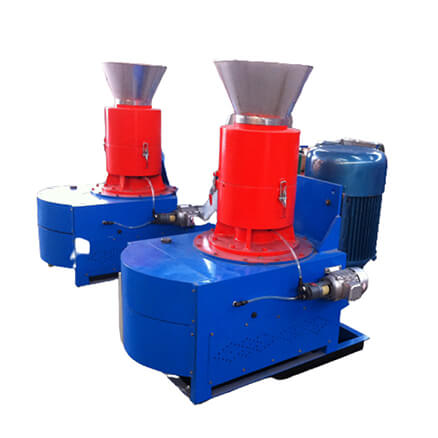

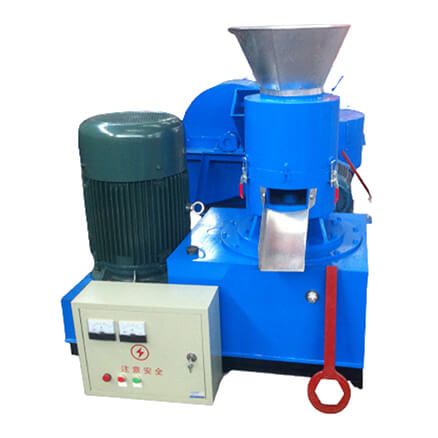

Flat Die Pellet Machine
Typical wood pellet production process:
Hammer Mill→Hot Air Dryer→Sawdust Pellet Machine→Cooling & Screening Machine→Packaging Machine
Zhengzhou E.P Machinery Co., Ltd. is a machinery manufacturing company in the production and trading business and has rich experience in designing and manufacturing pellet production lines. Our factory can produce all the equipment related to the wood pellet production line, which includes hammer mills, airflow dryers, flat die wood pellet machines, cooling & screening machine, and packaging machine. Our company not only provides evaluation, customization, installation, and commissioning services but also a very complete after-sales service to ensure that the wood pellet production line achieves the highest production efficiency and customers can get the best economic benefits.
Applicable raw materials:
Our company's pellet production line can process a variety of biomass materials. You can choose the most economical raw materials according to the application and price. The following are suitable feeding raw materials.
Wood：Wood (such as rubber trees, pine, eucalyptus, willow, acacia), sawdust, wood shavings, and wood chips;
Agricultural waste : husk (such as rice husk, rice bran, wheat husk, etc.), straw (such as corn stalk, wheat stalk, canola stalk, cotton stalk, etc.), bagasse, peanut husk, pineapple peel, reed, soybean stalk, etc.
Others : coconut shell, palm fiber, palm kernel shell (PKS), waste paper, grass (such as alfalfa, king grass, elephant grass), moso bamboo, and other biomass waste.
Wood Pellet Machine
Sawdust pellet machine is a kind of biomass fuel forming equipment. It is mainly used to produce environmentally friendly fuel pellets from agricultural waste such as cotton straw, wheat straw, corn stalk, corn cob, etc. The fuel pellets made by this machine can be widely used in household heating, fireplaces, boilers, gasifiers, biomass power plants and other fields. It works by pressing and compacting materials into the die hole by the relative movement of the pressing roller and die, and forming through the holes. The machine has a motor to drive its reducer, the reducer drives the main shaft, and the main shaft drives the press roller frame to rotate. The press roller makes auto transmission while revolving on its axis.
Highlights
1. The mold gap is adjustable, suitable for different materials, and the pressing performance is good;
2. The equipment runs smoothly, with low noise, energy-saving, and environmental protection;
3. Wide application range, convenient operation, saving time and effort;
4. High forming density, low crushing rate, and high output;
5. Uniform shape, high strength, and good mobility;
6. Low equipment investment and low operating cost;
7. Simple structure, low failure rate, and low maintenance cost.
Technical Parameter
| Model | Power (kw) | Capacity(kg/h) | Size (m) | Weight (kg) |
| HSKL-E200 | 7.5 | 100-120 | 1.15*0.53*0.75 | 280/320 |
| HSKL-E250 | 15 | 180-200 | 1.25*0.6*0.85 | 350/400 |
| HSKL-E300 | 22 | 200-300 | 1.3*0.6*0.9 | 480/550 |
| HSKL-E350 | 30 | 400-500 | 1.65*1*1.6 | 950/1000 |
| HSKL-E450 | 37 | 500-700 | 1.8*1*1.75 | 1200/1300 |
| HSKL-E550 | 45 | 850-1000 | 2*1.1*1.8 | 1500/1600 |
| HSKL-E800 | 90 | 1500-2000 | 2.25*1.25*2.2 | 3700/3800 |
| HSKL-E1000 | 110 | 2000-2200 | 2.1*1.05*2.25 | 5100/5200 |
