Box Dryer
Production line introduction :
The mesh belt dryer is mainly used for drying the finished balls in the ball briquette production line. The drying time is about 20-30 minutes. In addition, it is also specially used for drying flake and strip materials with good air permeability, and pellet materials.

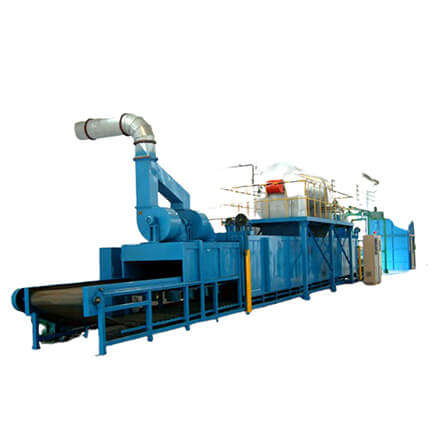

Box Dryer
The mesh belt dryer is mainly used for drying the finished balls in the ball briquette production line. The drying time is about 20-30 minutes. In addition, it is also specially used for drying flake and strip materials with good air permeability, and pellet materials. Paste materials can also be dried after being molded by a granulator or briquette making machine. The mesh belt dryer works by using chain plates made of heat-resistant steel, which can be made into one or more layers according to the customer's requirements.
Highlights
1. Equipped with an automatic tensioning device, ensuring the mesh belt runs and overturn smoothly;
2. High strength, low deformation rate, and with good air permeability;
3. The mesh belt is driven by a speed-regulating motor, able to adjust the running speed and control the drying time as required;
4. Each section of the mesh belt dryer has a maintenance channel for easy maintenance of the equipment.
Technical Parameter
| Model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | |
| Number of units | 4 | 5 | 4 | 5 | 4 | 5 | |
| Belt width (m) | 1.2 | 1.6 | 2 | ||||
| Dry section length (m) | 8 | 10 | 8 | 10 | 8 | 10 | |
| Material spreading thickness (mm) | 10-80 | ||||||
| Operating temperature (℃) | 50-120 | ||||||
| Steam pressure (Mpa) | 0.2-0.6 | ||||||
| Steam consumption (Kg/h) | 120-130 | 150-375 | 150-375 | 170-470 | 180-500 | 225-600 | |
| Heat transfer area (m2) | 272 | 340 | 352 | 440 | 448 | 560 | |
| Drying time (h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.2-1.5 | |
| Drying capacity (Kg water/h) | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 | |
| Number of fans | 5 | 6 | 5 | 6 | 5 | 6 | |
| Total fan power (kw) | 9.9 | 12.1 | 9.9 | 12.1 | 18.2 | 22.2 | |
| Total power of equipment (kw) | 11.4 | 13.6 | 11.4 | 13.6 | 19.7 | 23.7 | |
| Dimensions | Length (m) | 10.05 | 12.05 | 10.05 | 12.05 | 10.05 | 12.05 |
| Width (m) | 1.5 | 1.5 | 1.91 | 1.91 | 2.33 | 2.33 | |
| Height (m) | 3.15 | 3.15 | 3.15 | 3.15 | 3.65 | 3.65 | |
| Gross weight (kg) | 4800 | 5780 | 5400 | 6550 | 6350 | 7800 | |
