Hammer Mill
Production line introduction :
The general production process of wood pellets: Log → Chipping → Drying → Crushing → Pelleting → Cooling and Screening → Packaging Zhengzhou E.P Machinery Co., Ltd. has rich experience in designing large-scale pellet production lines. It is a professional pellet machine manufacturer in design, manufacturing, installation, and after-sales service. E.P Machinery is available to provide you with a complete set of pellet production solutions, including wood chippers, dryers, hammer mill, pellet machines, cooling & screening machines, and packaging machines. E.P Machinery also can provides you customized production, installation, and commissioning services. Besides, we have also established a branch company in Malaysia. All our machines are exported to overseas markets and are welcomed by customers all over the world. The output of our wood pellet production line ranges from 900kg/h-3t/h and can process a variety of different raw materials. The pellets discharged are smooth, and the appearance of the pellets is perfect and beautiful. The following are the suitable raw materials for our wood pellet machine : Hardwood : oak, birch, beech, rubberwood, eucalyptus, pine, and other wood chips; Softwood：Agricultural waste (such as corn stalk, wheat stalk, cotton stalk...), chaff (rice husk, rice bran, peanut husk, bagasse, soybean stalk...); Others : waste paper, coconut shell, grass, palm shell, etc.
Hammer Mill

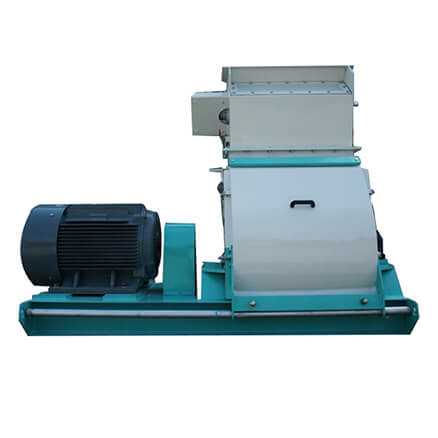

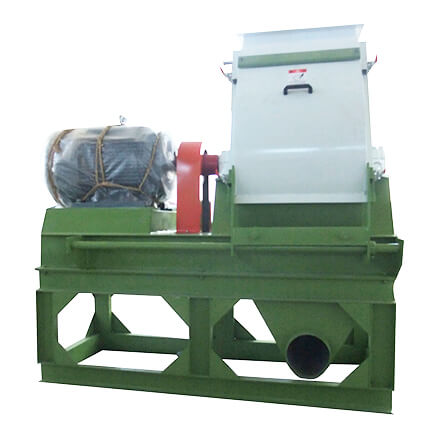

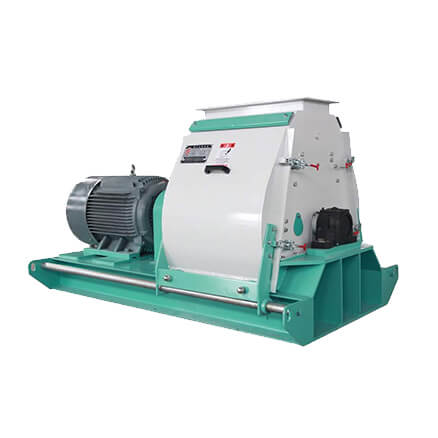

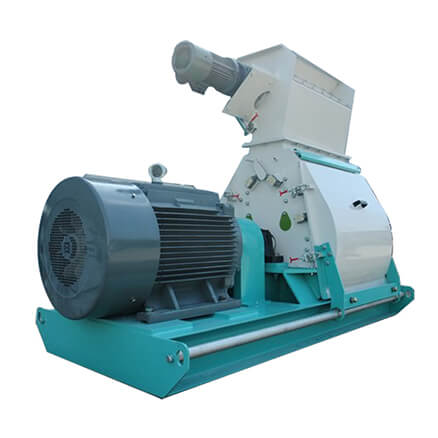

Hammer mills are widely used for wood crushing, such as wood branches, wood chips, leaves, rice husks, cotton stalks, coconut shells, lump charcoal, etc. It produces strong impact and friction on the materials by its high-speed rotating hammers. It has the characteristics of simple structure, wide versatility, strong adaptability and high production efficiency. The hammer mill is mainly composed of a base, rotor, an upper casing, and a feed guide plate, etc. When operating, the raw materials enter the machine through the top, and into the crushing chamber from the left and right through the feed guide plate. Under the impact of the high-speed rotating hammer and the friction of the sieve plate, the materials are gradually crushed, and passes through the screen holes and discharged from the base outlet. The crushed materials are less than 5mm, which are very suitable for the further processing of the wood briquetting and pelleting machines.
Highlights
1． Equipped with a cyclone dust collector, more environmentally friendly.
2． Uniform hammer plate, without deviation.
3． Reasonably designed hammers, the crushed material is finer and more uniform, not easy to cause internal fragmentation.
4． The hammer, lining plate, and impact plate are made of wear-resistant alloy material, which make sure it has longer service life.
5． Low and large feeding mouth, convenient to feed materials and install the production line.
6． Approve by dynamic balance test, no vibration.
Technical Parameter
| Model | HSCP-56*40 | HSCP -60*45 | HSCP -60*60 | HSCP -66*60 | HSCP -66*80 | HSCP -66*100 | ||
| Power(kw) | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 |
| Capacity(t/h) | 0.8-1 | 1.8-2 | 2-2.5 | 3.5-4 | 4.5-5 | 5-6 | 5.5-6.5 | 6-8 |
| RPM | 2980 | 2980 | 2980 | 2980 | 2980 | 2980 | 2980 | 2980 |
| Hammers Quantity(pcs) | 28 | 32 | 44 | 56 | 84 | 84 | 116 | 116 |
| Weight(t) | 0.7 | 0.96 | 1.3 | 1.53 | 1.8 | 2.04 | 2.6 | 2.8 |
| Size (LxWxH)(mm) | 1700*900*900 | 1800*1100*1100 | 1920*1100*1100 | 1920*1300*1200 | 2430*1300*1200 | 2430*1300*1200 | 2750*1300*1200 | 2830*1300*1200 |
